The DFA 127 is the powerhouse of automatic swing door operators.

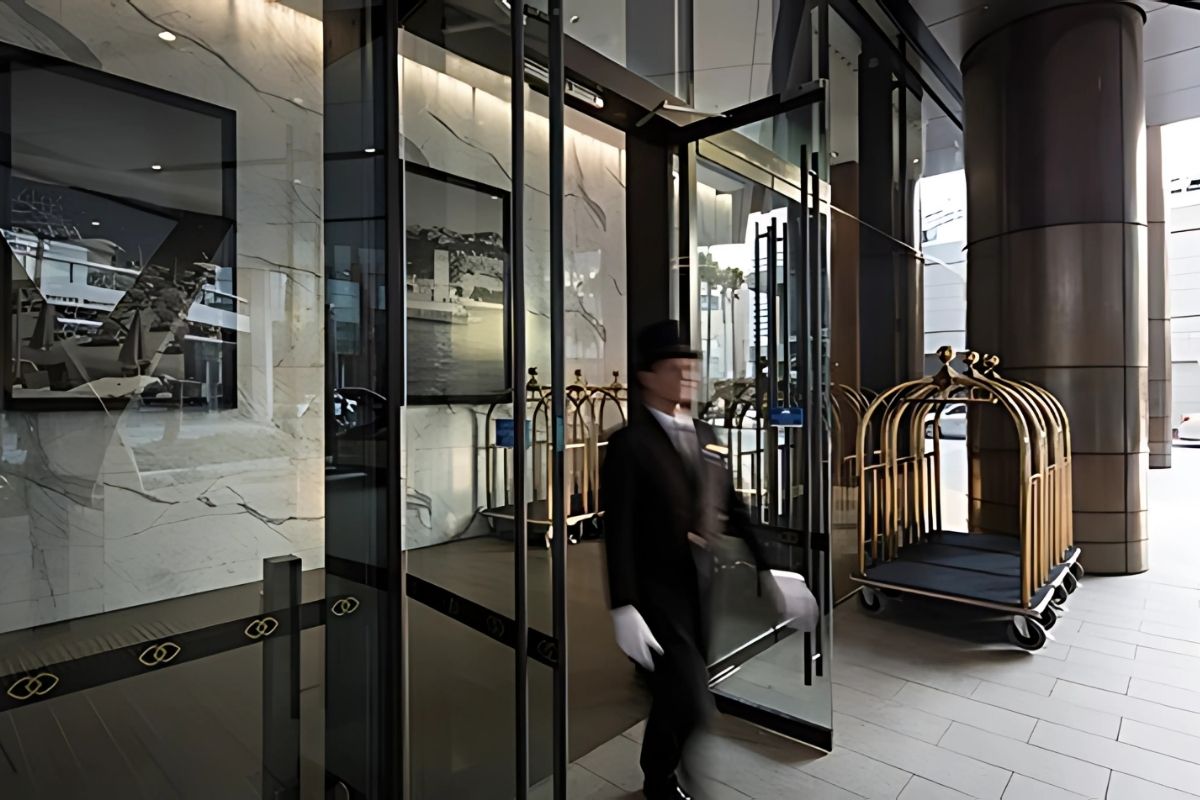

Its versatility means it is perfect for providing an automatic opening in a wide range of environments, from busy shopping malls to healthcare facilities. It is compact and reliable with microprocessor technology allowing many additional programmed functions.


The adjustable spring force of the DFA 127 Full Power enables a range of door sizes from 50kg to 350kg to be used. Spring forces can be quickly and easily adjusted on-site using the adjustment screw. The sophisticated technology enables complex functions to be programmed with ease and optimum power deployment in the entire swing area.

The DFA 127 Full Power microprocessor controls every door movement evaluating the current door position, the door speed and the final position at every instant to precisely calculate the optimum motion. This eliminates any sudden end-stops, jerky braking actions, or creep speed increases.

Safety is also additionally increased by the use of a redundant force limitation option which comes into operation should power to the main operator be lost.

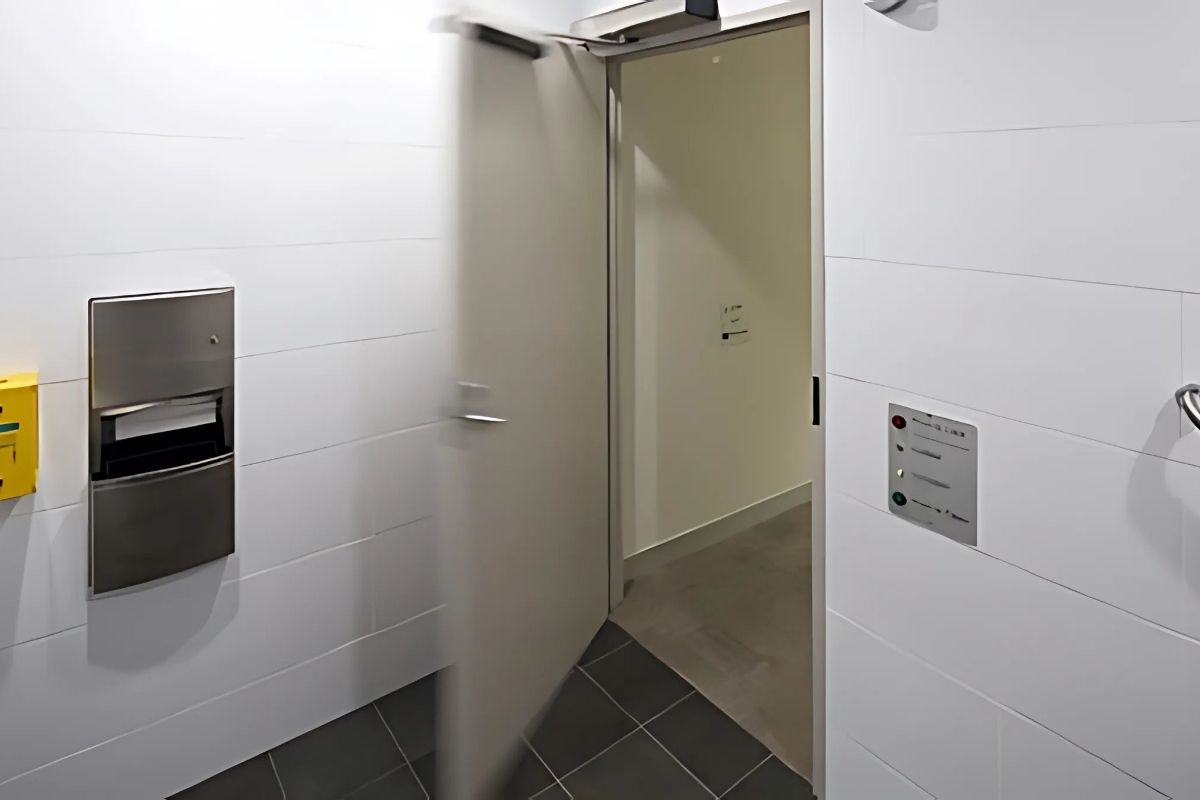

In addition, the operator can be programmed to stop and retract upon encountering an object in the entrance, which makes an ideal automatic swing door operator where elderly or physically impaired patrons utilise the doorway.

  • Features
    • Swiss made quality and reliability.
    • Strong mechanical gearing to accommodate doors up to 350kg.
    • Refined technology.
    • Compact design.
    • Practically silent operation.
    • Power saving mode.
    • Programmable microprocessor.
    • Easy to use control switch BDE-E.
  • Benefits
    • Reliable and versatile.
    • Wide range of applications.
    • Can be modified to suit functional requirements.
    • Functional options available.
  • Options
    • Redundant force limitation option.
    • Break-out option for emergency exit available.
    • Double swing doors with or without master/slave operation.
    • Adjustable opening of one or both door panels (stretcher opening).
    • Interlock function for two single doors installed consecutively.
    • Direction-oriented opening for oncoming traffic in corridors.
  • General Technical Specification
    • Power supply voltage: 230V AC, 50/60Hz
    • Rated power: 67W
    • Consumption in standby mode: 13W



    Drive Dimensions

    • Length: 600mm
    • Height: 85/108mm
    • Depth: 124/126mm



    Adjustable parameters

    • Opening angle: 70° – 115°
    • Open time: 0 – 60s
    • Opening speed: 3 – 20s
    • Closing speed: 5 – 20s



    Operating conditions

    • Ambient temperature: –15°C to +50°C
    • Humidity range: Up to 85 % rel. humidity, non-condensing
    • Type of protection: IP20

Technical specifications and information
